Let's look at the EQ subject. When it comes to Subs
this is a hazy subject as will be evident by what is presented here. The
Critical Q Sub actually has a simplified EQ system and while presenting
how it works, and that may be a bit difficult to understand, how to apply
it simply is covered in the
User Setup Page - so don't
despair.
Please note what is presented below is the
Amplifier's Frequency Response, as measured by an MLS signal into
the subject amp firing into an 8 Ohm dummy load. These are actual
measurements and not simulations. They should
not be
confused with the
Acoustic Response.

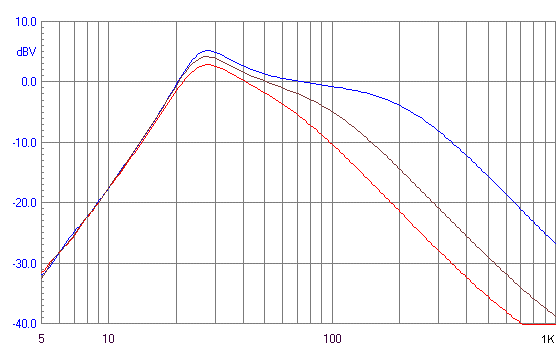

This is how the EQ looks in the standard Jaycar
AA-0501 Amp:
Can't say it looks great, in fact
it's awful. As a comparison to come, see that the -6dB points are 50 Hz
and 160 Hz - but considering this has a +4dB boost at 30 Hz, the real -6dB
point is 100Hz. The bass peak at 30 Hz and the rapid roll-off below means
this is not suitable as an Audiophile Sub, but rather for Audio Visual,
like thumping Movies, but not real Hi-Fi.

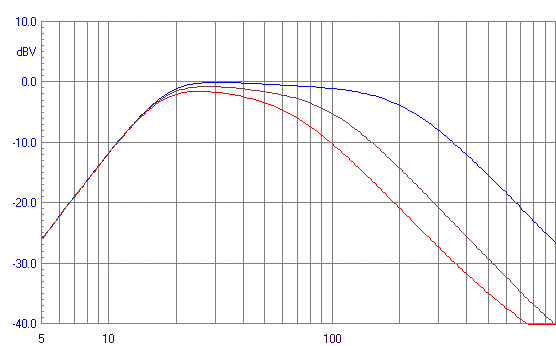

Now compare this with the Parts
Express 300-794 Amp:
Much
better, but suffers from similar LF roll-off, not as much.
The midrange suppression could also be better. That has to be improved!

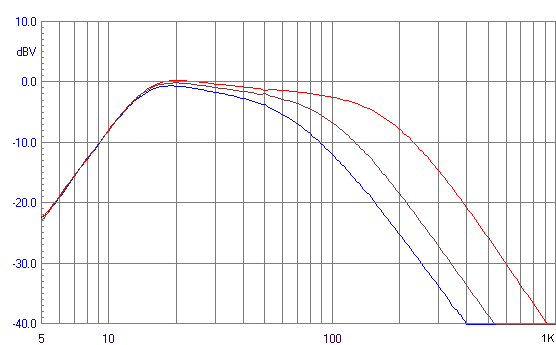

Now compare this with our modified
amplifier (but final filter still missing):
Yes, very similar to the Parts Express 300-794, but now
flatter down to 20 Hertz and less LF Roll-Off. Also midrange suppression
needs improving.

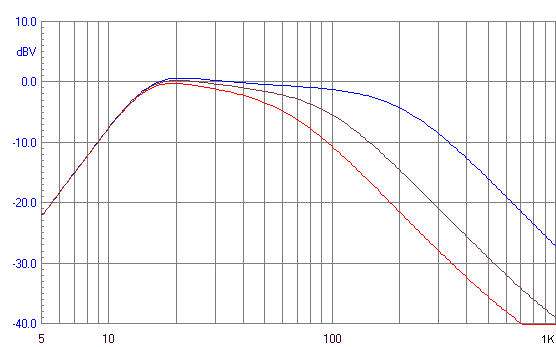

FINAL
DESIGN
Much better midrange suppression.
The ultimate Low-Pass rate is now 3rd Order when
it previously was 2nd Order. That's 18dB/Octave
rather than 12dB/Octave. This prevents the Sub from messing up the
all-important midrange.
